What is Demsiter Pad?

Demister pads are filter elements commonly made of metal or stainless steel mesh designed to be highly permeable, allowing the gas to freely pass through while simultaneously trapping and removing the liquid droplets. They have higher absorption rate than other types of pads. Metal mesh pads can handle a lot of liquid and vapor and still remain intact for a longer period of time. The porous mesh layer allows for easier flow of air and liquid. This ensures that any entrained droplets are removed from the gas stream, thus preventing blockage and corrosion in downstream equipment.

Stainless steel woven knit mesh can absorb up to 99% of liquid and vapor. Metal pads are capable of handling high liquid and vapor content, while the stainless steel mesh pads offer better insulation and are more resistant to corrosion.

Standard type demister pads are used in chemical plants and oil refineries, food and beverage plants, electronics, aerospace, and automotive industries.

Mist Eliminator Pads Products offer a number of benefits:
Repeated uses;
Superior protection;
Superior efficiency;
Lightweight;
Cost effective;
Easy installation.

Yingdu supplies standard demister pads and customized for overseas customers.
Demister pads are available in a variety of styles and sizes. The pad is reinforced by multiple layers of knit wire mesh supported by rings. The filter media has high filtration efficiency, a low pressure drop and a long working life.

Mesh Style: York 421, 431, York 931 style, York 326, etc.

York 431 style demister pads are stainless steel wire mesh filter media for liquid and gas applications. Made from SS304, SS304L or SS316L, these pads are commonly used in the chemical and oil industries, coalescing liquids from steam and air vents, and collecting and retaining liquid droplets from gas streams.

Elements / parts of standard demsiter pads:

Mesh pad;
Support ring;
Closing elements;
Mesh pad ring supports;
R clamps;
Bolts, nuts and washers.

Customized Demister Pads Examples:

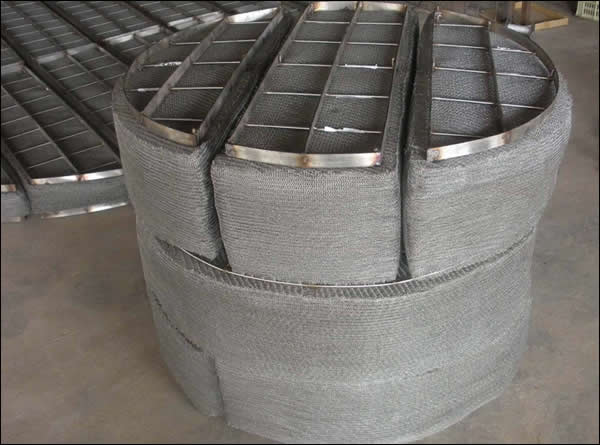

MESH PAD DEMISTER
Thickness: 150MM

MESH PAD AGGLOMERATOR
Thickness 150MM (INCLUDING SUPPORT RINGS, CLOSING ELEMENTS, MESHPAD RING
SUPPORTS, R- CLAMPS, BOLTS, NUTS & WASHERS)

MESH PAD KNITTED 35" X 35" 6PLY-FLS



Filter mesh materials for standard demister pads producing:

Specification List of Filter Mesh
Model	Specification	Wire Diameter mm	Materials	Technical Notes
Standard	40-100 Model 60-150 Model 140-40 Model 40-100 Model 40-100 Model 40-100 Model 40-100 Model	0.1x0.4 0.1x0.4 0.1x0.4 0.27 0.1x0.4 0.25 0.2	stainless steel wire stainless steel wire stainless steel wire gal. iron wire copper wire polyamide fiber PVC fiber	1, For 40-100 model: 40 holes in 100% width 2, Metal filter mesh is knitted mesh type
